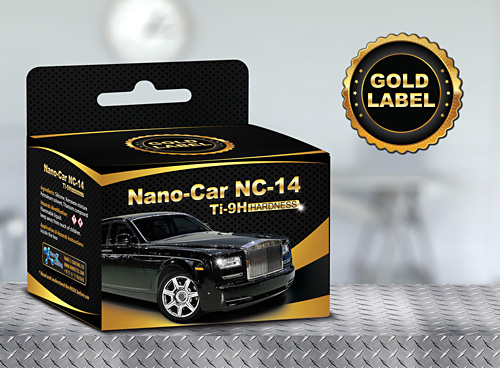

Car Nano Coating NC-14
Transparent hydrophobic coating for restoring the appearance, protection & preserving of the car paintwork
Ti - 9H  hardness
What is Car Nano Coating?

NC-14 was developed optimally as a nanometric coating of visible size, 25-50 microns thick. It is intended for renewing, restoring and preserving the car's attractive appearance, with UV protection, hydrophobic, corrosion-proof, reduction of dust and contaminants and for easy cleaning.
NC-14 is applied on the car's lacquer in a strong crosslink coating with a maximum hardness of 9H combined with a hard titanium base. The strength of the protection can be increased by application of an additional coat.

NC-14 is applied as a transparent protective coating with outstanding capacity "to penetrate and fill the holes" in the surface. The coating thereby obtained will increase the attractiveness and appearance of the car, will restore and rejuvenate the color depth without impairing the transparency, and will also increase resistance to slight abrasions and micro scratches such made during car wash machines operation.

NC-14 will provide the surface excellent properties of massive chemical resistance, for instance against bird droppings and fruit trees, repelling water, mud and ice, hydrophobic and oleophobic (oilness-repelling) properties with strong and stable UV protection.

All these properties greatly improve the resistance to corrosion and disintegration of the lacquer coating and preserve the paint color also in harsh environmental conditions of soot, humidity, sea and saline humidity, contamination, mildew, fungus etc.

NC-14 helps reduce the accumulation of contaminants as noted and facilitates their easy removal (easy-to-clean effect) as well as self-cleaning in winter.

NC-14 thereby protects and preserves the initial textural properties of the coated surface for many years.

For what is it intended?
  • For the vehicle and aircraft industries.
  • For restoring and protection of private cars, trucks, buses, motorcycles.

The protection advantages:
  • Spares the need for polishing which by its action leads to removal of at least one coat of lacquer, thereby reducing the existing protection against wear and peeling.
  • Spares the need for wax as a protective coating.
  • Addition coatings layers will provide the surface stronger protection and will improve the color appearance.
  • Strengthens the protection against erosion, wear.
  • Preserve the object's appearance with its initial properties for a longer period.
  • The hydrophobic and oileophobic properties (water and oiliness-repellent) do not allow dirt, scale and contaminants:
    a) To adhere to the car paint and thereby facilitate easy removal with water only, and economize on the cost of chemical and acid removers.
    b) The coating forms a stable barrier against contaminants such as bird droppings and fruit trees, preventing the damage caused by them.
  • Reduces fingerprint traces and allows their easy removal.
  • Strong and stable UV durability allows resistance for many years (varies according to the environment and the type)
  • Stable chemical resistance to almost all standard household or industrial cleaning products generally used in the car cleaning industry.
  • Helps to preserve the surface also in harsh environmental conditions of humidity and saline humidity.

** Very attractive cost per square meter!!

The product properties:
  • Dilution: Not required. The product is ready for use.
  • Drying/hardening mechanism: natural, without external means. However, the hardening time can be accelerated with IR lamps or a hot air system with a temperature of 60°C for up to an hour and in an environment with maximum relative humidity of 50-70%.
  • Sheen level: full transparency.

Method of application:

Gold level:
  1. Apply the coating in a shaded, closed, ventilated place, protected against dust and dirt in as far as possible. A working temperature of 10-30°C is recommended. Maximum humidity of  50-60%.
  2. Clean and wash the area well, removing grease and dirt, with soap and water.
  3. Dry well with a cloth or electrical hot air devices
  4. Protect with adhesive tape on the connecting lines with car parts that are not designed for coating such as: around headlights, nickel bars, car symbols, windshields, etc.
  5. For deep micron cleaning use Component A preparation and microfiber cloth, with rotating movement. 1-3 car parts each time.
  6. Wait for full evaporation (2-3 minutes).
  7. Only on the area cleaned with Component A, drip 5-6 drops each time on the enclosed sponge and gently and thoroughly apply a first coat in straight overlapping lines, in one direction, without applying pressure.
  8. Wait 1-1.5 minutes until the first hardening. Warning: do not exceed this time since the coating will harden and be impossible to remove. Immediately clean, dripping and coating in undesirable locations
  9. On conclusion of the hardening, smooth the surface and remove the remainders - use quality microfiber and apply gentle pressure, with rotating movement to achieve a complete shine and without remainders.
  10. For second layer application wait 20-30 minutes and repeat sections 7-9.
    Platinum level: For application of a third and fourth layers -repeat sections 7-9
  11. Drying time for contact: 1 hour after final layer.
    Full hardening: 48 hours.
    Final hardening and for inspection: after 72 hours.
  12. The surroundings and the tools can be cleaned with white spirit and only as long as the product has not yet dried.
  13. In industrial use - low air pressure is required (airless with fine nozzle of 0.25-0.3 or less).

Coverage:

Gold level - Final thickness of coating: 50-100µ.
Platinum level - Final thickness of coating: 100-200µ.

* Important remark: coating with additional layers will give the surface greater protection.


Packaging:
  • DIY GOLD KIT (2 coats)
  • DIY PLATINUM KIT (4 coats)
  • Industrial packaging: 5 liters, 20 liters

Storage:

In original and closed container the product's lifetime is 12 months.
Storage temperature: 3-30°C.


Warnings and remarks:


  • Flammable. Do not smoke. Keep away from fire source, heat, keep out of reach of children. Use standard protective means, read all the instructions and understand the MSDS.
  • Do not apply in temperatures of less than 10°C or more than 35°C.
  • Apply in a ventilated place.
  • Remove drips and dripping immediately.
  • Carry out preliminary test in small, hidden place.
  • In case of swallowing or contact with eyes rinse abundantly with water and seek medical treatment immediately.
  • Remove clothing that absorbed the product and immediately wash your body with soap and water.

All the data supplied is to the best of the knowledge and experience of the company in Israel and abroad; however the customer is not exempt from his obligation and responsibility to test the product prior to actual application in a small and hidden place. The company's liability is limited to manufacturing fault only and to refund of the product cost at the company's rates or replacement of the product. The company is not liable for consequential damages caused for any reason whatsoever that are beyond its control. The company supplies preliminary testing and suitability services for any surface intended for coating.
