Glass Nano Coating NC-18
Transparent hydrophobic coating for protecting and preserving glass from contaminants and for reducing dust
What is Glass Nano Coating?
NC-18 was developed optimally as a nanometric coating of visible size, 25-50 microns thick.
It is intended for maintaining the appearance, UV protection, hydrophobic (water repellent) reducing dust, contaminants and for easy cleaning.
NC-18 is applied on glass as a transparent protective coating excelling in its capacity to "fill" surface holes without impairing transparency and passage of light and thus to maintain, protect and extend the lifespan of glass against turbidity and natural wear.

NC-18 will give the surface excellent properties of massive chemical resistance, , improving the resistance to abrasion and micro scratches, repelling water, mud and ice, hydrophobic and oleophobic (grease repelling) properties, strong & stable UV protection, and will serve as an anti-graffiti barrier that allows easy cleaning of graffiti and dirt.

All these characteristics greatly improve the resistance to glass destruction and disintegration, keep the transparency, also in harsh environmental conditions of soot, humidity, sea and saline humidity, bacterial contamination, mildew, fungus, mildew and so forth.
NC-18 helps reduce the accumulation of contaminants as noted and facilitates their easy removal (easy-to-clean effect) as well as self-cleaning in winter.
NC-18 thereby protects and preserves the initial textural properties of the coated surface for many years.

For what is it intended?
  • For the glass industry.

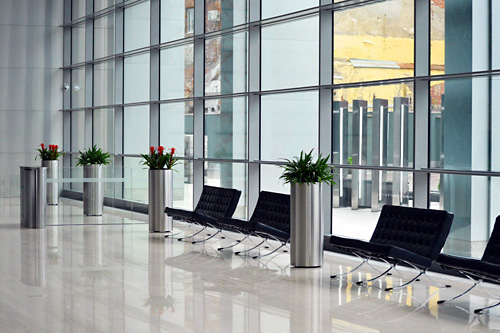

  • For restoring and protecting curtain walls ,plate-glass coated buildings and malls.
  • For kitchen and bathroom products such as: basins, ovens, refrigerators, kitchen surfaces, hospital fittings, shower stalls etc.
  • For railings, elevators, escalators.
  • For the jewelry, sculpture and Judaica industry.

The protection advantages:
  • Strengthens the protection against erosion, wear, turbidity (whitening) of the glass, thereby extending the object's lifespan.
  • Improves the object's appearance with its initial properties for a very long time.
  • The hydrophobic and oleophobic properties (water and oil-repellent) do not allow dirt, scale and contaminants:
    a) To adhere to the object and thereby facilitate easy removal with water only, and economize on the cost of oil, chemical and acid removers;
    b) They give and strengthen the general level of surface sterility and cleanness.
  • Reduces fingerprint traces and allows their easy removal.
  • Excellent resistance to erosion as a result of unique adherence capability.
  • Strong and stable UV durability allows resistance for many years (varies according to the environment and the type)
  • Stable chemical resistance to almost all standard household or industrial cleaning products.
  • Helps to preserve the surface also in harsh environmental conditions of humidity and saline humidity.
** Very attractive cost per square meter!!

The product properties:
  • Dilution: Not required. The product is ready for use.
  • Drying/hardening mechanism: natural, without external means. However, the hardening time can be accelerated with IR lamps or a hot air system with a temperature of 60°C for up to an hour and in an environment with maximum relative humidity of 50-70%.
  • Sheen level: full transparency.

Method of application:
  1. Clean well, wash off dirt and dust and any other contaminant with clean water and soap.
  2. Dry well with a cloth or electrical means providing hot air.
  3. Protect with adhesive tape on the surfaces  that are not designed for coating such as: aluminum rails, plastic parts etc
  4. For deep cleaning use Nano-Z Coating’s CW-101 with nonwoven or microfiber cloth and dry well.
  5. Drip 5-6 drops each time on the enclosed sponge and apply in straight and overlapping lines in one direction without applying pressure.
  6. Wait only 1-1.5 minutes for the first hardening. Then, smooth the surface and remove any residue. Use high quality microfiber, applying light pressure, with rotating movement to achieve a complete shine.
  7. After 2-3 minutes - apply a second coat as described above. (Warning - a second coat can be applied up to 5 minutes from the end of application of the first coat. If the time was exceeded do not apply a second coat and remain with one coat. In such a case the protection will be less.)
  8. Drying time for contact: 1 hour from conclusion of application of the second coat.
    Full hardening: 48 hours.
    Final hardening and for tests : after 72 hours
  9. The surroundings and the tools can be cleaned with white spirit and only as long as the product has not yet dried.

    - In industrial use - low air pressure (airless with fine nozzle of 0.25-0.3 or less).

Coverage capability
100-140 Sqm/liter per one coat - depending on the surface texture and the manner of application.
Final coating thickness 25-50 nm.

* Important remark: coating with additional layers will give the surface greater protection.

DIY KIT:  1 liter; 5 liters; 20 liters.

Storag :
In original and closed container the product lifetime is 12 months.
Storage temperature: 30°C.

Warnings and remarks:
  • Use standard protective means such as: suitable gloves, safety goggles and for people with allergies full face mask even though the coating is almost odorless.  - Remove drips and leaks immediately.
  • Apply at an ambient temperature of 25°C on a clean dry surface. Do not apply at a temperature of less than 4°C or more than 35°C. Apply in a ventilated place.
  • Keep away from fire and out of reach of children.
  • In case of swallowing or contact with eyes rinse abundantly with water and seek medical treatment immediately.
  • Remove clothing that absorbed the product and immediately wash your body with soap and water.

All the data supplied is to the best of the knowledge and experience of the company in Israel and abroad; however the customer is not exempt from his obligation and responsibility to test the product prior to actual application in a small and hidden place. The company's liability is limited to manufacturing fault only and to refund of the product cost at the company's rates or replacement of the product. The company is not liable for consequential damages caused for any reason whatsoever that are beyond its control. The company supplies preliminary testing and suitability services for any surface intended for coating.
