Nano Steel NC-20
Transparent coating for renewing and protection of metals
What is NC-20?
NC-20 was developed optimally as a nanometric coating of visible size, 25-50 microns thick. It is intended for renewing the appearance and protecting non-ferrous metals such as stainless steel, aluminum, brass, copper, gold, silver, titanium, various alloys and ferrous metals such as iron, tin, steel.
NC-20 is applied as a transparent protective coating with outstanding capacity to penetrate "holes" in the surface. It thereby restores and "rejuvenates" metal surfaces that have become worn or lost their beauty and gives them massive chemical resistance, improved protection against corrosion and oxidation, improved abrasive resistance, repelling water, mud and ice, hydrophobic and oleophobic (grease repellent), strong, stable UV protection, and as an anti-graffiti barrier facilitating easy cleaning.
All these greatly characteristics improve the resistance to corrosion and disintegration also in harsh environmental conditions of soot, humidity, sea and saline humidity, bacterial contamination, mildew, fungus, mildew etc.
NC-20 helps reduce the accumulation of contaminants as noted and facilitates their easy removal (easy-to-clean effect) as well as self-cleaning in winter.
NC-20 thereby protects and preserves as new the initial textural properties of the coated surface for many years.

For what is it intended?
  • For the vehicle industry, for vehicle wheel rims, truck chassis, military vehicles.

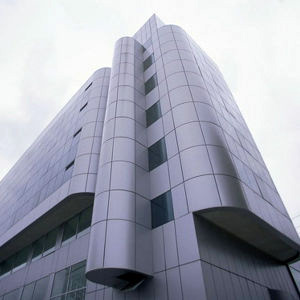

  • For renovation and rejuvenation of buildings and malls coated with aluminum or other stainless metal plates.
  • For kitchen and bathroom products such as: sinks, ovens, refrigerators, kitchen surfaces, hospital fittings, faucets, shower stalls etc.
  • For the aluminum industry (profiles, surfaces etc.) industrial elements such as railings, elevators, escalators.
  • Buildings, bridges, and iron and steel products such as containers, beams and iron constructions, basic iron in building, water, gas, oil, sewage, chemicals pipes, plants with large quantities of pipes and metal etc.
  • For the silver and gold jewelry and Judaica industry.
  • For bicycles, jeeps and off-road and mountain bikes.
  • Agricultural machines and industrial equipment.
How does Nano-Steel work?
 NC-20 creates a protective layer that penetrates deep into the surface and is applied as a supplementary coating, rejuvenating the surface; it forms an attractive nano-sized protective coating.

The protection advantages:
  • Strengthens the protection against erosion, wear, rust, and corrosion of metals, thereby extending the object's lifespan.
  • Improves the object's appearance with its initial properties for a longer period of time.
  • The hydrophobic and oleophobic properties (water and oil-repellent) do not allow dirt, scale and contaminants:
    a) To adhere to the object and thereby facilitate easy removal with water only, and economize on the cost of oil, chemical and acid removers;
    b) They give and strengthen the general level of surface sterility and cleanness.
  • Reduces fingerprint traces and allows their easy removal (on stainless steel, brass, silver and gold).
  • Excellent resistance to erosion as a result of unique adherence capability.
  • Strong and stable UV durability allows resistance for many years (varies according to the environment and the type)
  • Stable chemical resistance to almost all standard household or industrial cleaning products.
  • Helps preserve the surface also in harsh environmental conditions of humidity and saline humidity.
  • Greatly improves the durability of elements coated with synthetic, oven-baked paints etc., for instance aluminum profiles.
  • Safe for food environment.
** Very attractive cost per square meter!!

The product properties:
  • Dilution: Not required. The product is ready for use.
  • Drying/hardening mechanism: natural, without external means. However, the hardening time can be accelerated with IR lamps or a hot air system with a temperature of 60°C for up to an hour and in an environment with maximum relative humidity of 50-70%.
  • Sheen level: full transparency.
Method of application:
  1. Clean well, wash off dirt and dust and any other contaminant with clean water and soap.
  2. Dry well with a cloth or electrical means providing hot air.
  3. Protect with adhesive tape on the surfaces  that are not designed for coating such as: glass,plastic,aluminum rails, etc
  4. For deep cleaning use Nano-Z Coating’s CW-101 with nonwoven or microfiber cloth and dry well.
  5. Drip 5-6 drops each time on the enclosed sponge and apply in straight and overlapping lines in one direction without applying pressure.
  6. Wait only 1-1.5 minutes for the first hardening. Then, smooth the surface and remove any residue. Use high quality microfiber, applying light pressure, with rotating movement to achieve a complete shine.
  7. After 2-3 minutes - apply a second coat as described above. (Warning - a second coat can be applied up to 5 minutes from the end of application of the first coat. If the time was exceeded do not apply a second coat and remain with one coat. In such a case the protection will be less.)
  8. Drying time for contact: 1 hour from conclusion of application of the second coat.
    Full hardening: 48 hours.
    Final hardening and for tests: after 72 hours
  9. The surroundings and the tools can be cleaned with white spirit and only as long as the product has not yet dried.
- In industrial use - low air pressure (airless with fine nozzle of 0.25-0.3 or less).
Coverage capability:
120-150 Sqm/liter per one coat - depending on the surface texture and the manner of application.
Final coating thickness 25-50 nm.

* Important remark: coating with additional layers will give the surface greater protection.
DIY KIT:  1 liter; 5 liters; 20 liters.
In original and closed container the product's lifetime is 12 months.
Storage temperature: 3-30°C.
Warnings and remarks:
  • Use standard protective means such as: suitable gloves, safety goggles and for people with allergies full face mask even though the coating is almost odorless.
  • Apply at an ambient temperature of 25°C on a clean dry surface. Do not apply at a temperature of less than 4°C or more than 35°C.
  • Keep away from fire and out of reach of children.
  • Apply in a ventilated place.
  • Remove drips and leaks immediately.
  • In case of swallowing or contact with eyes rinse abundantly with water and seek medical treatment immediately.
  • Remove clothing that absorbed the product and immediately wash your body with soap and water.
All the data supplied is to the best of the knowledge and experience of the company in Israel and abroad; however the customer is not exempt from his obligation and responsibility to test the product prior to actual application in a small and hidden place. The company's liability is limited to manufacturing fault only and to refund of the product cost at the company's rates or replacement of the product. The company is not liable for consequential damages caused for any reason whatsoever that is beyond its control. The company supplies preliminary testing and suitability services for any surface intended for coating.
